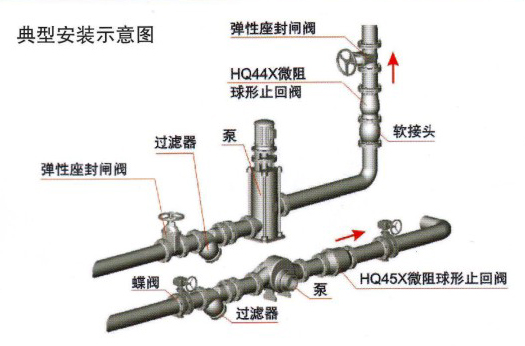

Product Name: HQ44 / 45X micro resistance ball valve Product Introduction: Micro resistance ball check valve, rubber ball for the valve package, the role of media in the slide valve body roll to open or close the valve. Crowd flow resistance loss, good sealing performance, muffler off, you can reduce water hammer wave. Can be mounted horizontally or vertically. Can be used to pump outlet cold water, hot water, industrial and domestic sewage pipe network, to prevent the media back. |
Technical parameters
PN: 1.0-1.6Mpa
Nominal diameter: 50-350mm
Temperature: 0 ℃ -80 ℃
Suitable medium: water, weak corrosive liquid
Flange Standard: GB / T 17241.6 GB9113
Test Standard: GB 13927 AP1598
The main parts of the material
Parts and materials | Body | Bonnet | Spring | Seat |
Material | Cast iron, ductile iron, cast iron | Copper, stainless steel | Stainless steel | Copper, stainless steel |

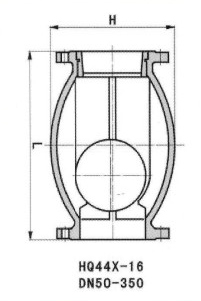

The main connection Dimensions
Unit: mm
DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 |
L | 203 | 216 | 241 | 292 | 330 | 356 | 495 | 622 | 698 | 787 | 914 | 978 | 978 | 1295 | 1448 | 1600 | 1760 | 1900 |
H | 80 | 210 | 225 | 245 | 280 | 320 | 380 | 450 | 470 | 500 | ||||||||
H1 | 510 | 570 | 640 | 715 | 815 | 825 | 980 | 1155 | 1260 | 1350 | 1660 | 1700 |
、
