Product Name： RVEX electric resilient seated gate valve Product Introduction： I plant illustrates resilient seated valves, according to the requirements of users equipped with a variety of electric actuators to achieve remote control and automatic control, a sensitive, reliable, convenient installation. It can be widely used on thousands of water, sewage, construction, petroleum, chemical, food, pharmaceutical, textile, electric power, shipbuilding, metallurgy, energy systems and other fluid lines as a regulator and shutoff device. |

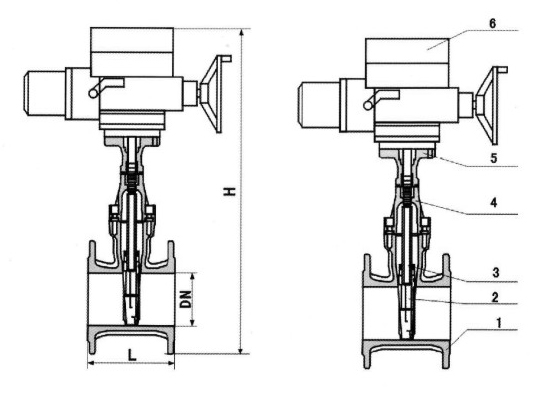

The main components Material
| NO . | Part Name | Material |
| 1 | body | gray iron, ductile iron, cast steel |
| 2 | valve plate | ductile iron covered with Buna-N or EPDM |
| 3 | Stem | stainless steel |
| 4 | bonnet | gray iron, ductile iron, cast steel |
| 5 | main frame | gray iron, ductile iron, cast steel |
| 6 | Electric Head |
The main technical parameters
PN: 1.0-2.5MPa
Working temperature: 0-120 ℃
Flange Standard: GB / T 17241.6 GB9113
Nominal diameter: 50-400mm
Suitable medium: water, oil, gas and other
Test Standard: GB13927 Ap1598
The main connection Dimensions
Unit: mm
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| L | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
| Hmax | 732 | 773 | 820 | 870 | 915 | 1003 | 1110 | 1263 | 1360 | 1550 | 1610 | 1900 | 1938 | 2120 |
