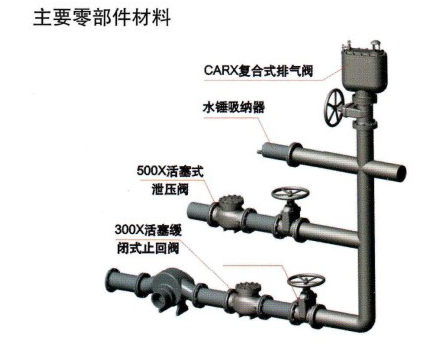

Product Name: CARX composite exhaust valve Product Introduction: CARX composite exhaust valve body is barrel-shaped, stainless steel float valve trim including leverage and valve. The valve is installed at the pump outlet or water distribution pipelines, to exclude the accumulated air in the tube, in order to improve the efficiency of the pipeline and the pump, when the negative pressure is generated within the tube once the elbow, the valve quickly sucked outside air, in order to prevent the pipeline damage due to the negative pressure. When the water injection tube, the valve is in the open position, a large number of exhaust gas, when the air is drained, the valve is filled with water, the float rises and driven valve closed to stop the exhaust gas, when the normal inner pipe for conveying water, if a small amount of air accumulated in the valve to a considerable extent, the water level dropped valve, when the air is discharged from the orifice. When the pump stops, generating a negative pressure within the flow of water in case of an empty tube or pipe, then quickly turned plugs, intake air to ensure pipeline safety. Medium temperature: 0-80 ℃. |
Technical Parameters
PN: 1.0-1.6Mpa
Nominal Diameter: DN25-32mm for threaded flange connection DN50-200mm
Suitable medium: water, oil, non-corrosive liquids
Working temperature: 0 ℃ -100 ℃
Flange Standard: GB / T 17241.6 GB / T 9113
Test Standard: GB 13927 AP1598
Main components material
parts and materials | body | bonnet | float | lever frame | Leverage | plugs |
Materials | ductile cast iron | ductile cast iron | stainless steel | stainless steel | aluminum bronze | aluminum bronze |

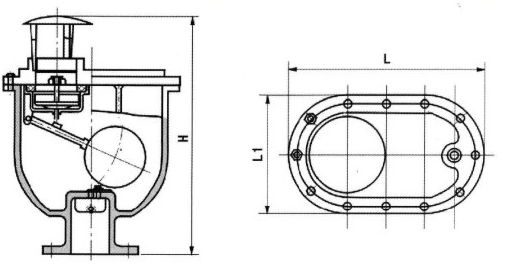

The main connection Dimensions
Unit: mm
DN | 25 | 32 | 50 | 65 | 80 | 100 | 150 | 200 |
L | 280 | 280 | 360 | 360 | 400 | 465 | 537 | 537 |
L1 | 176 | 176 | 208 | 208 | 244 | 275 | 332 | 32 |
H | 330 | 330 | 475 | 475 | 552 | 623 | 686 | 686 |
