Product Name: Fire dedicated signal resilient seated gate valve Product Introduction: Signal valve, butterfly valve signal often used in the fire sprinkler piping system to monitor the water supply line can be far indicate valve opening. |

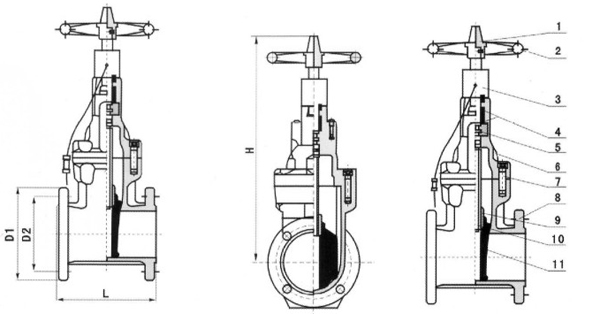

The main components Material
NO . | Part Name | Material |
1 | Transmission cap | ductile iron, cast steel |
2 | handwheel | Malleable Iron |
3 | Dust | Plastic |
4 | ring | nitrile rubber, EPDM |
5 | thrust bearing | Bronze |
6 | bonnet | gray iron, ductile iron, cast steel |
7 | Bolt | carbon steel, stainless steel |
8 | body | gray iron, ductile iron, cast steel |
9 | brass nut | tin Qingdao Steel |
10 | Stem | stainless steel |
11 | valve | ductile iron + nitrile rubber or EPDM
|
The main technical parameters
PN: 1.0-2.5MPa
Working temperature: 0-120 ℃
Flange Standard: GB / T 17241.6 GB9113
Nominal diameter: 50-400mm
Suitable medium: water, oil, gas and other
Test Standard: GB13927 Ap1598
The main connection Dimensions
Unit: mm
DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
L | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
H | 370 | 408 | 452 | 510 | 566 | 630 | 765 | 927 | 1048 | 1110 | 1320 | 1900 | 1938 | 2120 |
